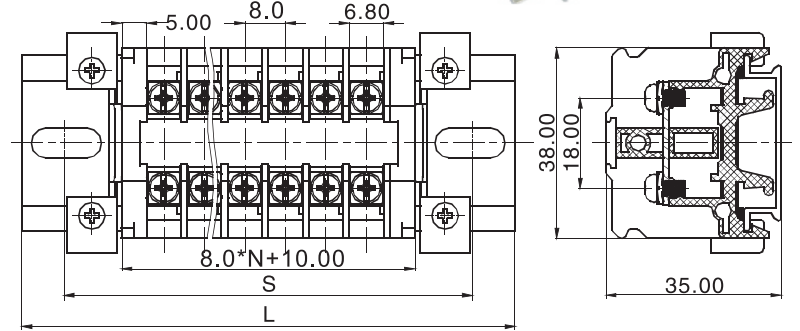

位数 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
铝轨长L |
57 |
57 |
77 |
77 |
97 |
97 |
97 |
117 |
117 |
137 |
137 |
137 |
157 |
157 |
177 |
177 |
固定孔距S |
40 |
40 |
60 |
60 |
80 |
80 |
80 |
100 |
100 |
120 |
120 |
120 |
140 |
140 |
160 |
160 |
TECHNICAL DATA
端子間距(Center Spase) |
8. 0mm |
壓線範圍(Wire Range) |
1.5mm² (Max) |
螺釘扭距(Screw Torque) |
7 Ibf. in |
額定電流(Rated Current) |
600V,10A |
衝擊耐壓(Surge Voltage) |
6000V |
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
螺釘材質(Screw Material) |
M3,STEEL |
端子材質(TerminaI Body) |
BRASS |
操作溫度(Temperature) |
-40°C~105°C |
