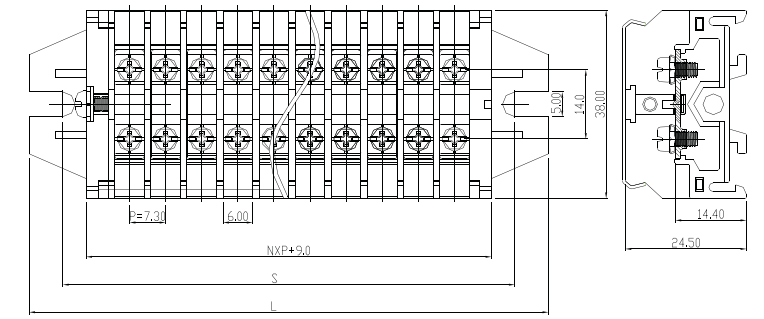

位数 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
铝轨长L |
39.3 |
46.6 |
53.9 |
61.2 |
68.5 |
75.8 |
83.1 |
90.4 |
97.7 |
105 |
112.3 |
119.6 |
126.9 |
134.2 |
141.5 |
148.8 |
固定孔距s |
22.8 |
33.1 |
40.4 |
47.7 |
55 |
62.3 |
69.6 |
76.9 |
84.2 |
91.5 |
98.8 |
106.1 |
113.4 |
120.7 |
128 |
135.3 |
TECHNICAL DATA
端子間距(Center Spase) |
7. 3mm |
壓線範圍(Wire Range) |
1.5mm² (Max) |
螺釘扭距(Screw Torque) |
7 Ibf. in |
額定電流(Rated Current) |
600V,10A |
衝擊耐壓(Surge Voltage) |
6000V |
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
螺釘材質(Screw Material) |
M3,STEEL |
端子材質(TerminaI Body) |
BRASS |
操作溫度(Temperature) |
-40°C~105°C |
